When designing or upgrading a pipeline system, selecting the appropriate components is crucial for achieving optimal performance, efficiency, and durability. Among these components, the ball check valve plays a vital role in maintaining unidirectional flow and preventing backflow. Choosing the right ball check valve for your pipeline requires careful consideration of multiple factors, from material selection to operational requirements. In this article, we will explore the essential aspects to consider and provide guidance to help you make an informed decision.

What Is a Ball Check Valve?

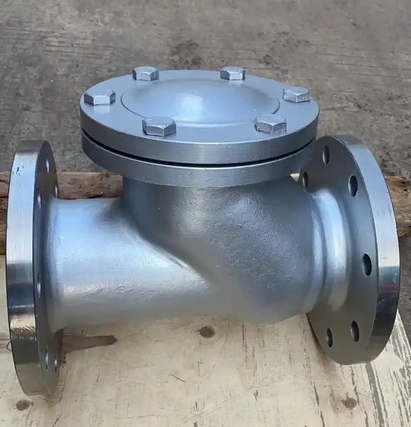

A ball check valve is a type of valve that allows fluid to flow in one direction while preventing backflow in the opposite direction. The valve consists of a spherical ball that rests on a seat. When fluid flows in the intended direction, the pressure lifts the ball off the seat, allowing passage. Conversely, when fluid attempts to flow backward, the ball returns to the seat, effectively blocking the flow. This simple yet effective design makes ball check valves a popular choice across industries such as water treatment, oil and gas, chemical processing, and more.

Key Factors to Consider

1. Pipeline Specifications

The first step in selecting a ball check valve is understanding the specifications of your pipeline system. Consider the following:

• Pipe Size: Ensure the valve’s diameter matches your pipeline size to avoid flow restrictions.

• Pressure Rating: Choose a valve that can withstand the maximum operating pressure of your system.

• Flow Rate: Select a valve that accommodates your desired flow rate without causing turbulence or pressure drops.

2. Material Compatibility

Ball check valves are available in various materials, each suited for specific applications. Choosing the right material ensures durability and resistance to corrosion, erosion, and chemical damage. Common materials include:

• Stainless Steel: Ideal for corrosive environments and high-temperature applications.

• PVC (Polyvinyl Chloride): Lightweight and suitable for low-pressure and chemical-resistant systems.

• Cast Iron: Durable and cost-effective for water and wastewater systems.

• Brass: Suitable for moderate-pressure applications and non-corrosive fluids.

Ensure the valve material is compatible with the type of fluid in your pipeline, whether it’s water, oil, gas, or chemicals.

3. Operating Conditions

Take into account the specific operating conditions of your system:

• Temperature Range: Ensure the valve material and design can handle the system’s temperature extremes.

• Viscosity of Fluid: For thicker fluids, choose a valve with a ball designed to lift easily under lower pressure.

• Debris and Solids: If the fluid contains debris or solid particles, opt for a valve with features that prevent clogging or wear.

4. Valve Design and Features

While the fundamental design of ball check valves is similar, variations exist to suit different applications. Some key design considerations include:

• Spring-Loaded Balls: Valves with a spring mechanism ensure quicker closure, reducing the risk of backflow.

• Silent Operation: Choose a valve with noise-dampening features if your system is in a noise-sensitive area.

• Full Port Design: Opt for a full port valve to minimize flow restrictions and maintain high efficiency.

5. Installation Orientation

Ball check valves can be installed in horizontal or vertical pipelines, but not all valves are suitable for both orientations. Verify that the valve you choose is compatible with the intended installation orientation to ensure proper functionality.

Benefits of Ball Check Valves

Ball check valves  offer several advantages that make them a preferred choice for many pipeline systems:

• Low Maintenance: The simple design with few moving parts reduces the need for frequent maintenance.

• Cost-Effective: Compared to other valve types, ball check valves are typically more affordable while providing reliable performance.

• Versatility: Suitable for a wide range of applications, from water and wastewater systems to oil and gas pipelines.

• Backflow Prevention: Ensures unidirectional flow, protecting equipment and maintaining system efficiency.

Applications of Ball Check Valves

Ball check valves are used in various industries, including:

• Water and Wastewater Treatment: Prevent backflow in pumps and pipelines to maintain system hygiene.

• Oil and Gas: Ensure unidirectional flow in pipelines transporting crude oil, natural gas, and refined products.

• Chemical Processing: Protect sensitive equipment by preventing the backflow of corrosive chemicals.

• HVAC Systems: Maintain proper flow direction in heating and cooling systems.

• Agriculture: Used in irrigation systems to control water flow and prevent contamination.




Common Mistakes to Avoid

While selecting a ball check valve, it’s essential to avoid common mistakes that can lead to operational inefficiencies or premature failure:

1. Ignoring Pressure Drop

A poorly chosen valve can cause significant pressure drops, reducing the overall efficiency of your system. Ensure the valve’s flow coefficient (Cv) matches your requirements.

2. Choosing the Wrong Material

Using an incompatible material can lead to corrosion, leakage, or valve failure. Always consider the fluid type, temperature, and pressure when selecting materials.

3. Neglecting Maintenance Requirements

While ball check valves are low-maintenance, regular inspection is still necessary to ensure optimal performance. Failing to maintain the valve can lead to clogging, wear, and reduced efficiency.

4. Improper Installation

Incorrect installation orientation or alignment can compromise the valve’s functionality. Follow the manufacturer’s guidelines to ensure proper installation.

Maintenance Tips for Ball Check Valves

To extend the lifespan of your ball check valve and maintain its efficiency, follow these maintenance tips:

• Regular Inspection: Check for signs of wear, corrosion, or debris buildup.

• Cleaning: Periodically clean the valve to remove accumulated debris or sediment.

• Lubrication: Ensure moving parts are well-lubricated to reduce friction and wear.

• Replace Worn Parts: Replace damaged balls, seats, or springs promptly to prevent further issues.




Conclusion

Selecting the right ball check valve for your pipeline is a critical step in ensuring the efficiency, reliability, and longevity of your system. By considering factors such as pipeline specifications, material compatibility, operating conditions, and valve design, you can make an informed choice that meets your specific requirements. Additionally, regular maintenance and proper installation practices will further enhance the performance of your ball check valve.

Whether you’re managing a water treatment facility, an oil pipeline, or an HVAC system, a well-chosen ball check valve can make all the difference in maintaining seamless fluid flow and preventing costly backflow issues. Take the time to evaluate your options carefully and invest in a valve that aligns with your operational needs.
