Blind Flange Installation Key Tips for Leak-Proof Connections

Oct 16,2024

Blind flanges are critical components used in piping systems across a wide variety of industries, from oil and gas to water treatment. These specialized flanges are designed to seal the end of a piping system, blocking the flow of liquids or gases. Whether used for maintenance, future pipeline expansion, or as a permanent seal, proper installation is crucial to ensure leak-proof connections. A poorly installed blind flange can lead to leaks, downtime, and costly repairs. In this article, we will explore the essential tips for installing blind flanges, focusing on techniques that help create a tight, durable, and leak-free seal.


Understanding the Role of Blind Flanges


Before delving into the installation process, it’s important to understand the role of blind flanges. Unlike other types of flanges, blind flanges do not have a central opening for fluid passage. Instead, they are used to close off the end of a pipe or valve, often for testing purposes, maintenance, or system extensions. Since blind flanges can handle high-pressure applications, they must be installed correctly to avoid leaks that could compromise system safety.


Materials and Tools Required for Blind Flange Installation


Before starting the installation process, ensure you have all the necessary materials and tools. Here are some of the key items needed:


  • Blind flange: Choose the correct flange type and size based on your pipe dimensions and pressure requirements.

  • Gasket: This is a critical component for preventing leaks. Ensure you select the right gasket material for the application, such as rubber, PTFE, or metal-reinforced gaskets, depending on the fluid or gas being sealed.

  • Bolts and nuts: High-quality bolts and nuts are essential for securing the flange. Ensure the bolts meet the required strength and size standards for your flange.

  • Torque wrench: Proper bolt tightening is key to leak-proof connections, and a torque wrench ensures bolts are tightened evenly and to the correct specification.

  • Lubricant: Applying an appropriate lubricant to the bolts reduces friction, allowing for uniform tightening.


Steps for Installing a Blind Flange


Let’s walk through the steps to install a blind flange properly to achieve a leak-proof connection.


1. Inspect the Components


Before installation begins, inspect all components thoroughly. Check the flange surface for defects like cracks, corrosion, or warping that could compromise the seal. Similarly, ensure the gasket is in good condition and fits snugly into the groove on the flange face. If any component appears damaged or defective, replace it before proceeding.

2. Align the Flange and Gasket


Once the components have been inspected, begin the installation by aligning the blind flange and gasket with the pipe end. The gasket is placed between the pipe and the flange to create a tight seal. Careful alignment is crucial to ensure even pressure distribution and prevent leakage points. If the gasket shifts out of place during installation, it can cause an incomplete seal.


3. Lubricate the Bolts and Nuts

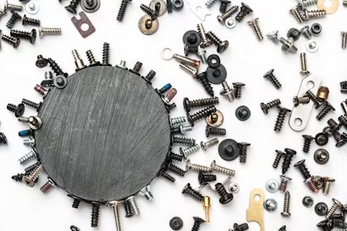

Bolts and Nuts

Lubricating the bolts and nuts is a small yet vital step in the installation process. This reduces friction during the tightening process and helps ensure that the bolts are torqued evenly. Be sure to use a lubricant that is compatible with the piping material and the fluid or gas inside the pipe.


4. Insert and Tighten the Bolts


Once the flange is aligned and the gasket is properly seated, it’s time to insert the bolts. Start by inserting all the bolts into the flange’s bolt holes, but do not fully tighten them yet. Begin tightening them in a crisscross pattern—this method ensures even distribution of pressure across the flange and prevents warping. Gradually tighten each bolt in small increments until all are hand-tightened.


5. Torque the Bolts to Specification


Using a torque wrench, tighten the bolts to the manufacturer's specified torque values. It is important to apply even torque across all bolts to maintain uniform pressure. Start by tightening each bolt to 30% of the specified torque, then increase to 60%, and finally, reach 100% of the specified torque in the same crisscross pattern. Over-tightening the bolts can damage the gasket or cause deformation in the flange, while under-tightening may result in leaks.


6. Recheck the Tightness


After torquing all bolts, allow the system to rest for a few minutes. This allows the gasket to settle and adjust under pressure. Afterward, recheck the bolt tightness to ensure none have loosened during the process. If any bolts feel loose, re-tighten them to the specified torque.


7. Pressure Test the Connection


After installation, it is essential to perform a pressure test to confirm the flange is leak-proof. The pressure test involves pressurizing the piping system and checking for any signs of leaks around the blind flange. Depending on the application, this could involve hydrostatic testing (with water) or pneumatic testing (with air or gas). If no leaks are detected, the installation is successful, and the flange is ready for use.


Common Mistakes to Avoid During Blind Flange Installation


Even with careful installation, certain mistakes can lead to leaks or flange damage. Here are some common pitfalls to avoid:


1. Skipping Gasket Inspection


Never overlook the gasket. A worn-out or improperly sized gasket can cause immediate leaks. Always inspect the gasket before installation and ensure it is suitable for the pressure and temperature conditions.


2. Incorrect Bolt Tightening Sequence


Tightening bolts sequentially around the flange instead of using a crisscross pattern can cause uneven pressure distribution. This can lead to flange warping or an incomplete seal. Always use the crisscross pattern for an even, leak-proof installation.


3. Over-Tightening the Bolts


It may seem like over-tightening the bolts will ensure a stronger seal, but it can have the opposite effect. Over-tightened bolts can deform the gasket or flange, leading to leaks or future maintenance issues.


4. Neglecting to Recheck Torque


After the initial tightening, the gasket will compress slightly under pressure. Neglecting to recheck and adjust bolt tightness can result in leaks after the system is pressurized.


Choosing the Right Blind Flange for the Job


Beyond the installation process, selecting the right blind  flange  for your piping system is equally important. Blind flanges come in various materials, such as carbon steel, stainless steel, and alloy steel, depending on the application. Factors like operating pressure, temperature, and the type of fluid or gas being handled will determine the best material choice for the flange.


Additionally, consider the specific pressure rating of the flange, such as ANSI Class 150, 300, or 600, to ensure it can handle the operating conditions of your piping system.


Conclusion


Blind flanges are an essential part of many piping systems, serving as reliable seals for system closures and maintenance points. Installing them correctly is crucial to avoid leaks and ensure long-term durability. By following these key tips—inspecting components, using the correct torque, and performing proper pressure tests—you can ensure leak-proof connections that keep your systems running efficiently. Whether you’re sealing off a pipeline for future use or testing, proper blind flange installation will help you avoid costly repairs and downtime.
